Power Supplies
800VDC/28VDC 3.5kW
Askeri standartları sağlayan bu güç kartı ile yüksek verimlilikte 3.5kW gücünde 28VDC çıkış sunulmaktadır.
- 800VDC giriş gerilimi
- 28VDC-125A çıkış kapasitesi
- Gerilim, Akım ve Sıcaklık korumaları
- MIL-STD-1275D ve MIL-STD-810G standartlarına uygun
440VAC/800VDC 7.5kW
This board provides 7.5kW 800VDC output satisfying military standards.
- 3 phase 440VAC input voltage
- 800VDC-9,4A output current
- Voltage, Current and temp protection
- Compatible with MIL-STD-1275D and MIL-STD-810G standarts
440VAC/28VDC 7kW
This power supply provides 7kW 28VDC output satisfying military standards
- 3 Phase 440VAC, 47-63Hz Input
- 28VDC-250A output current
- Voltage, current and temperature protection
- Complies with MIL-STD-810G
440VAC/56VDC 7kW
This power supply provides high efficiency 7kW 56VDC output satisfying military standards
- 3 Phase 440VAC, 47-63Hz Input
- 56VDC-125A output current
- Voltage, current and temperature protection
- Complies with MIL-STD-810G
270VDC/36VDC 8kW
This power supply provides high efficiency 7kW 56VDC output, satisfying military standards
- 270VDC input voltage
- 36VDC-225A output current
- Liquid cooling
- Voltage, current and temperature protection
- Complies with MIL-STD-704D and MIL-STD-810G

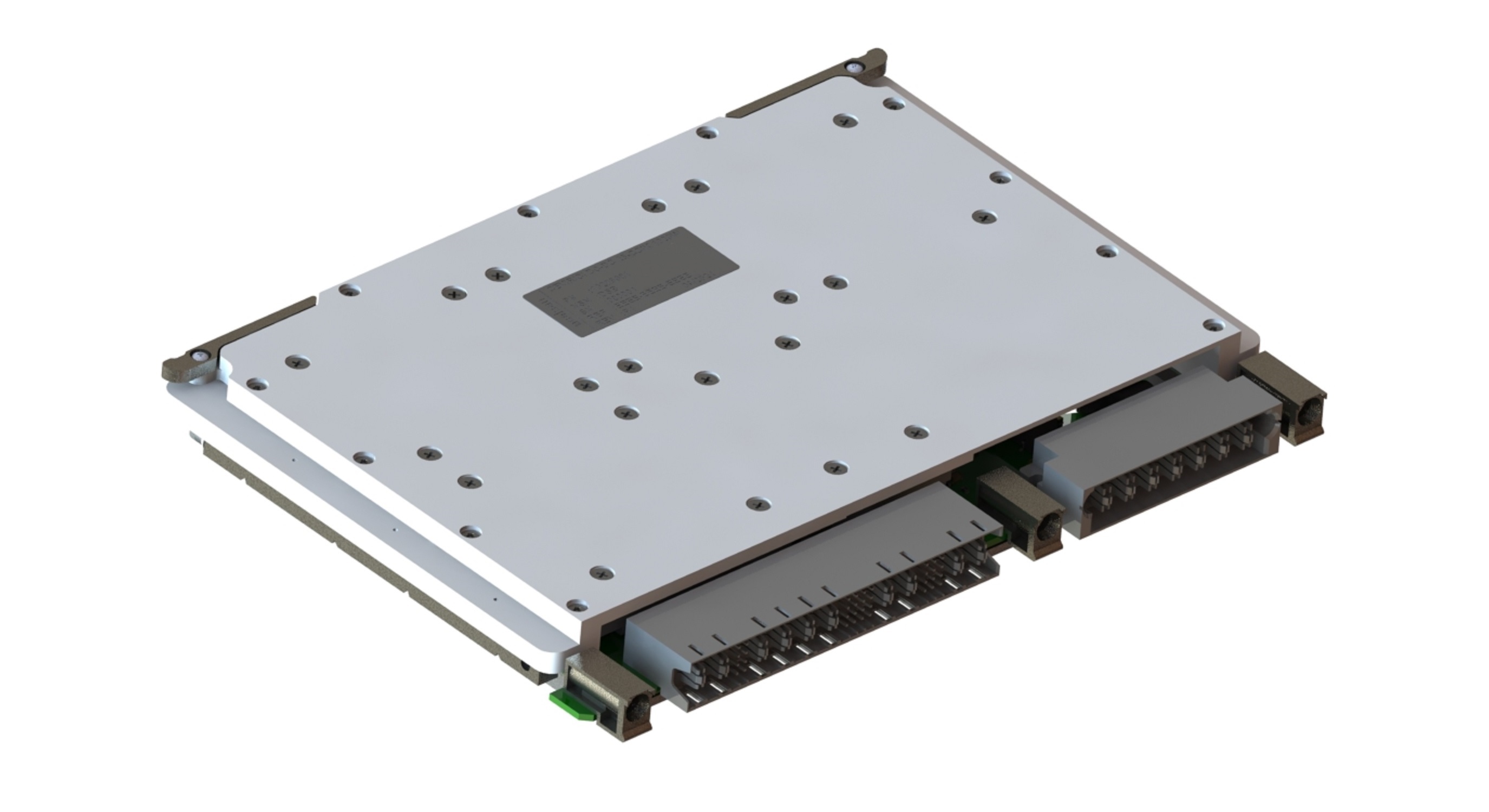

VITA62 28V 1000W PS
Meeting VITA62 standards, this power module is ideal for VPX chassis-mounted solutions.
- 18-36VDC input voltage
- 12V - 60A output
- 5V - 50A output
- 3.3V - 15A output
- Voltage, current and temperature protections
- Complies with MIL-STD-1275D and MIL-STD-810G
