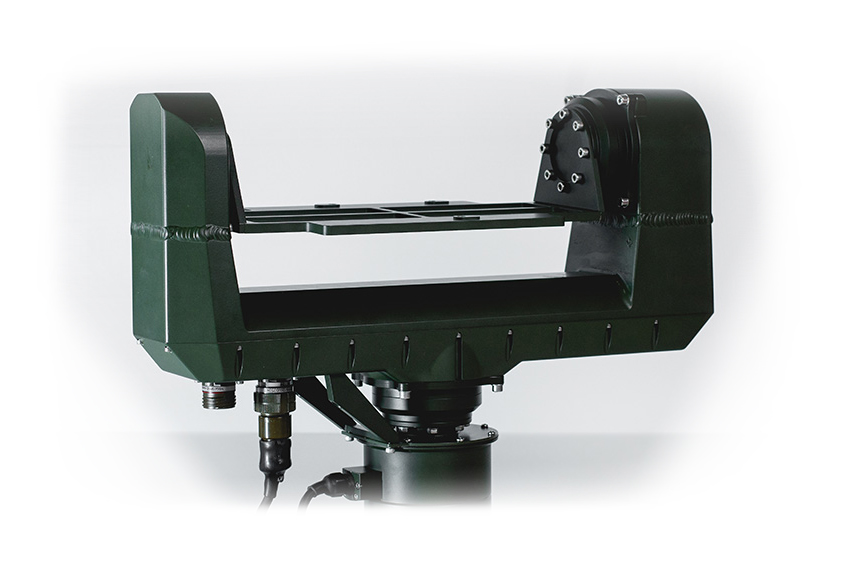

Dengeli İki Eksen Hareket Kontrollü Platform

A platform with horizontal and vertical axis motion, with position and adjutable speed control. Controllable by a computer through provided interface. PID parameters, motion range, speed and acceleration values can be set via this interface.

Technical Specifications

Model Number MPT.D2X
Model Name Balanced Two Axes Motion Controlled Platform
Motion Limits (Horizontal) Option-1 : 360° (with Slip Ring)
Option-2 : ±180° (without Slip Ring)
Motion Limits (Vertical) ±45°
Position Resolution 0.1 mrad (0.006°)
Position Accuracy (stable withoud load) 1.4 mrad (0.08°)
Load (max.) 10 kg
Speed (min.) 0.2 mrad/s (0.01°/s)
Speed (max.) 1000 mrad/s (57°/s)
Constant Torque (max.) 13,4 Nm
Instant Tork (max.) 27 Nm
Input Voltage 12-32 VDC
Control Interface RS422
Operating Temperature -32°C ... +55°C
Storage Temperature -40°C ... +65°C
Thermal Shock -40°C ... +65°C
Humudity MIL-STD-810G, Metod 507.5 Procedure II
Vibration MIL-STD-810G
Mechanical Shock MIL-STD-810G
Rain At speeds of 18m/sec wind and 10 cm/hour rain
Sand and Dust @+23°C and +52°C, 5-10.6 gr/m3, 6-10m/sn
Working at Height < 3000 m
Falling < 122 cm (with its bag)
Weight 6 kg (8 kg with slip ring)
